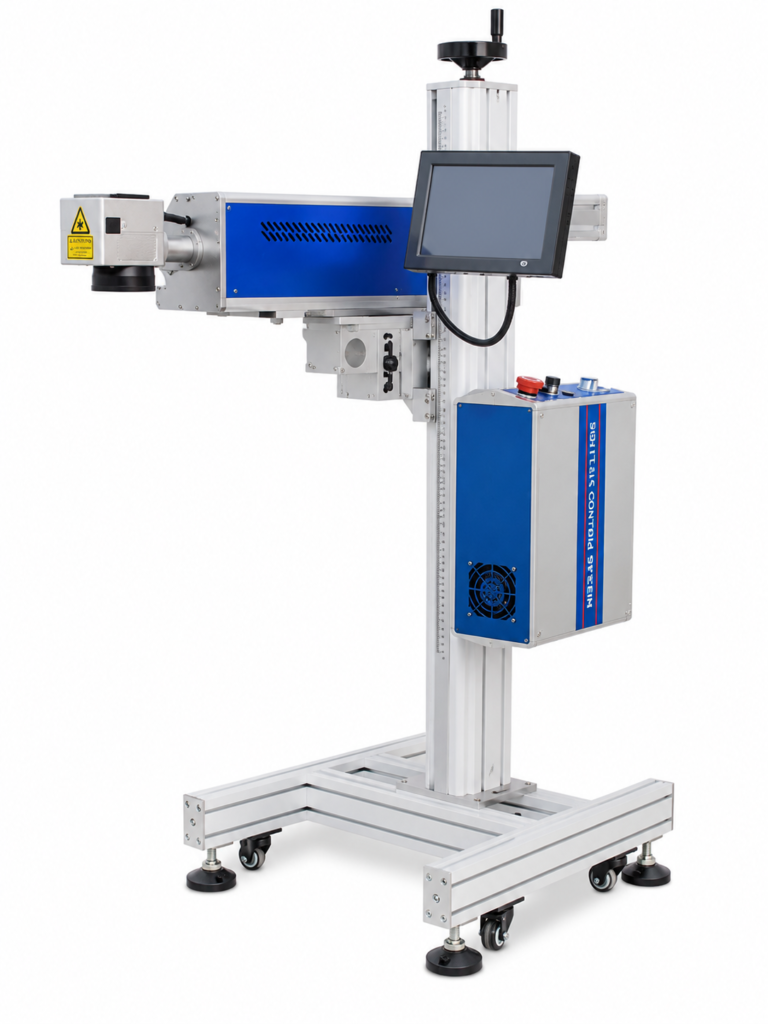

Online Co2 Laser Printer (SG-CO2 35)

The Online CO₂ Laser Printer (SG-CO2 35) is a high-performance industrial laser marking system designed for fast, permanent, and high-quality coding on continuous production lines. It uses advanced CO₂ laser technology to print text, batch numbers, manufacturing dates, expiry dates, serial numbers, barcodes, QR codes, logos, symbols, and other product information without using ink or consumables.
The SG-CO2 35 is suitable for marking on various non-metallic materials, including paper, cardboard, plastic, glass, wood, leather, rubber, labels, films, and packaging materials. Its high-speed operation, precise marking quality, and low maintenance requirements make it ideal for the food & beverage, pharmaceutical, cosmetics, electronics, packaging, and manufacturing industries.

MAIN ADVANTAGES

PERMANENT & HIGH-QUALITY MARKING

Produces sharp, clear, and permanent markings that resist fading, smudging, and normal wear.

HIGH-SPEED ONLINE OPERATION

Designed for integration with continuous production lines, enabling efficient marking at high production speeds.

NO INK OR CONSUMABLES REQUIRED

CO₂ laser technology eliminates the need for ink cartridges and other printing consumables, reducing operating costs.

VERSATILE MARKING CAPABILITY

Can print text, dates, batch numbers, serial numbers, logos, barcodes, QR codes, and other variable information.

LOW MAINTENANCE & LONG SERVICE LIFE

Features reliable laser technology with minimal maintenance requirements, providing stable performance and long-term industrial operation.

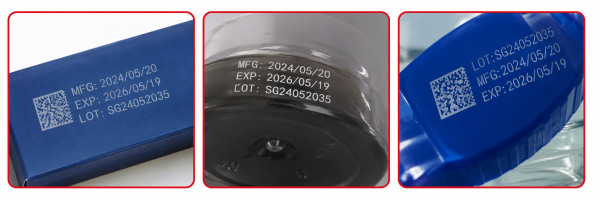

APPLICATION

vector 6

SPECIFICATIONS

Model: SG-CO2 35

Laser Power: 30W / 40W / 60W / 100W

Laser Type: CO2 Laser

Control System: CNF-130B

Laser Wavelength: 10600 / 9300 / 10200 nm

Weight: 64 KG

Position: Red Light Preview / Positioning

Material: Aluminium

Marking Speed: 12000 mm/s

Marking Area: 110 × 110 / 150 × 150 / 175 × 175 mm / 75 × 75–600 × 600 mm Custom

Cooling System: Air Cooling

Socket: SD Card / USB 2.0 / Signal

Application: Paper, plastic, acrylic, wood, rubber, leather, glass, PET bottle, glass bottle, carton, plastic bag, label, etc.
