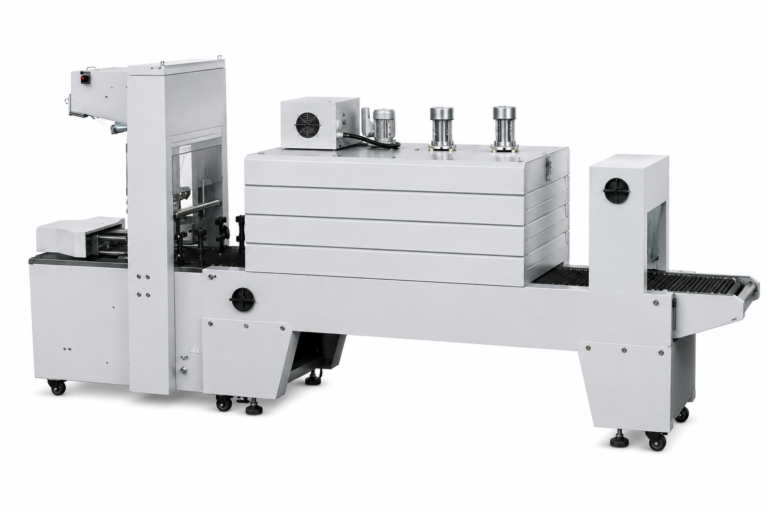

The Semi Auto Sleeves Wrapper (BZJ-5038B + BSE-5040A) is an efficient semi-automatic shrink packaging system designed for wrapping and shrinking multiple products into secure and compact bundles. The BZJ-5038B sleeve wrapper applies and seals the shrink film around the products, while the BSE-5040A shrink tunnel uses controlled heat circulation to tightly shrink the film for strong and professional packaging.
This machine combination is ideal for packaging bottles, beverage packs, cans, cartons, boxes, jars, household products, food products, and other bundled goods. It is widely used in the food & beverage, pharmaceutical, cosmetics, chemical, household goods, and general packaging industries.
Combines sleeve wrapping and heat shrinking in one efficient packaging system for secure and professional results.
Perfect for packaging multiple bottles, cans, cartons, boxes, and other products together in compact bundles.
Creates tight and durable shrink packs that help protect products during storage, handling, and transportation.
Semi-automatic operation improves production speed, reduces manual workload, and delivers consistent packaging results.
The machine can accommodate different product sizes and packaging requirements by adjusting the sealing, temperature, and conveyor settings.
Model: BZJ-5038B (Pneumatic)
Voltage: 220–240V, 50/60Hz
Power: 1.8KW
Length of Sealing Bar: 600 mm
Capacity: 0–6 Packaging/minute
Max. Packaging Dimension: 450 × 270 × 350 mm
Min. Packaging Dimension: 250 × 60 × 60 mm
Air Source Supply: 170 L/min, 0.3–0.5 MPa
Width/Thickness of Film: Max. 550 mm / 0.03–0.25 mm
Max. Diameter of Film Roll: 30 mm
Machine Size: 1020 × 830 × 1980 mm
Weight: 225 KG
Shrink Film: PE
